Constructive positions

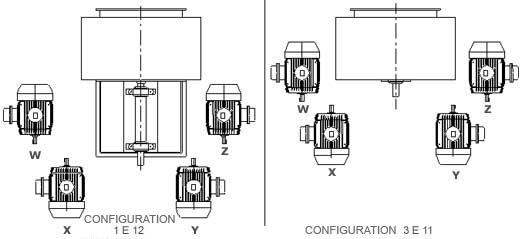

View of Centrifugal Fan plant

The location of the motor is determined by plant view and the actuation position of the fan.
Position is determined by the letters W, X, Y or Z, according to drawing above.

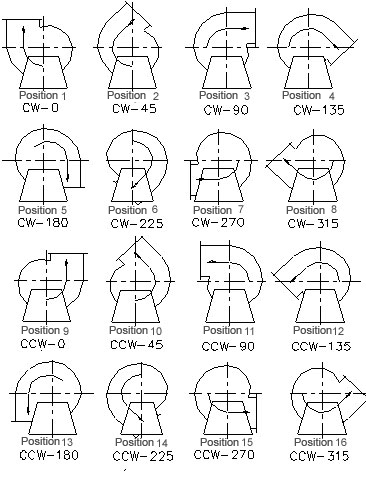

Fan discharge
(View from actuation side)

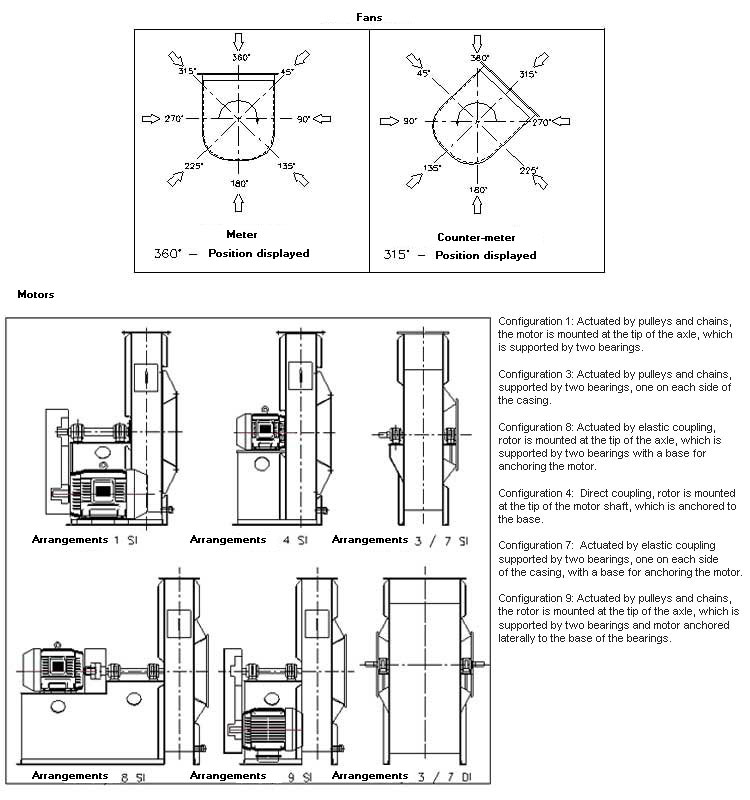

Information:
